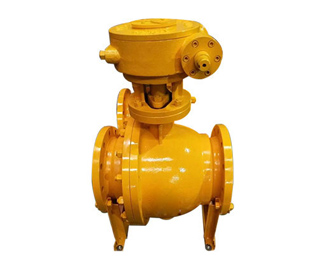

Ball Valve

Our team works closely with our valuable customers and understands exact need of their applications. We tend to be updated with recent industrial approach. With such clear criteria, we design and fabricate wide range of ball valves.

Ball valves and integrated components are designed as per international standard. Fire safe stem and best quality stem seal ensures long lasting gland packing. We offer ball valves with different end connection options like screwed, socket weld, butt weld and flanged ends ball valves. It is designed as per BS-5331 and tested as per API-598.

ball valve manufacturers

Our ball valves are available with standard size of 15 NB to 300 NB and pressure rating ANSI and BS 150#, 300# and 600#. We manufacture fire safe and non fire safe kinds of ball valves with 3, 2 and 1 piece. Depending upon the applications, we offer varied alternative for operation like manual and wrench.

These type of valves are the form of quarter- turn valve which uses a hollow and rotating ball to control the flow through it and open when the balls hole is in with the flow and closed when it turn 90-degrees by the valve handle. Handle rest horizontal with the flow when it opens and perpendicular when it closed.

It is also provided with option of geared and pneumatic for the operation. It is also designed for corrosive applications. It is provided with glass filled Teflon or graphite as per demand. Ball valve is provided with spherical disc to control the flow. Lever position of valve itself indicates the position of flow.

Depending upon the diverse operational demand, we offer many options for construction material like S.S ball valves, cast steel ball valve, pneumatic ball valve, motorized ball valve, cast iron ball valves, forged steel ball valves, trunnion mounted ball valves and many more. Our pneumatic actuated, electrical operated, flanged ball valves with 2 and 3 piece design are widely used in industry.

size range 15 NB to 300 NB
Pressure ratin Operation ANSI/BS 150#, 300#, 600# flanged/socket weld/ screw weld
Type 3,2 or 1 piece, fire safe/ non fire safe
End connection wrench/manual/ gear/pneumatic
Port opening regular/full
Seat PTFE/carbon or glass filled teflon/ graphite
Wedge/disc/ball floating/ trunnion mounted
Packing and gasket PTFE/ glass filled teflon/ graphite
Code of design BS – 5331
Testing API – 598
Inspection manufacturer/ client/ 3rd party
